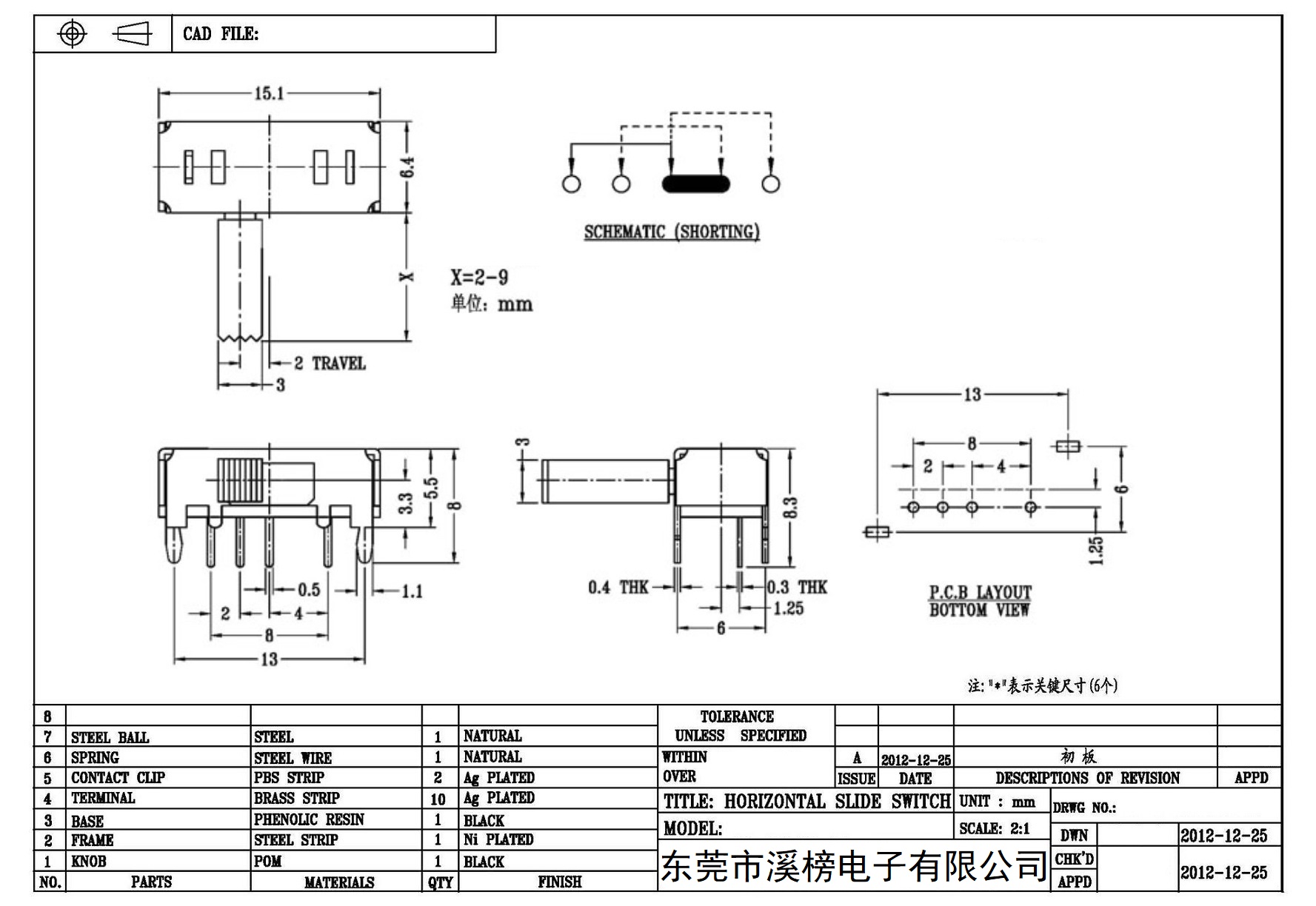

XB-K-13D12
|
|
 |
|
侧拨拨动开关性能电气参数
一.额定电流: 0.3A 0.5A DC 额定电压: DC 30V 50V
二.接触阻抗: ≤30mΩ
三.绝缘阻抗: ≤100mΩ
四.耐焊温度: 260±5°5s
五.使用寿命: 10,000 cycles
六.使用温度: -25 ℃ to 80 ℃
七.使用湿度: ≤85% RH
八. 操作力 : 250gf±100gf
九.手柄高度:2.0mm-10mm 可定制
Slide switch performance electrical parameters
1. Rated current: 0.3A 0.5A DC Rated voltage: DC 30V 50V
2. Contact impedance: ≤30mΩ
3. Insulation resistance: ≤100mΩ
4. Solder resistance temperature: 260±5°5s
5. Service life: 10,000 cycles
6. Operating temperature: -25 ℃ to 80 ℃
Seven, the use of humidity: ≤85% RH
Eight, operating force: 250gf ± 100gf
Nine, handle height: 2.0mm-10mm can be customized
