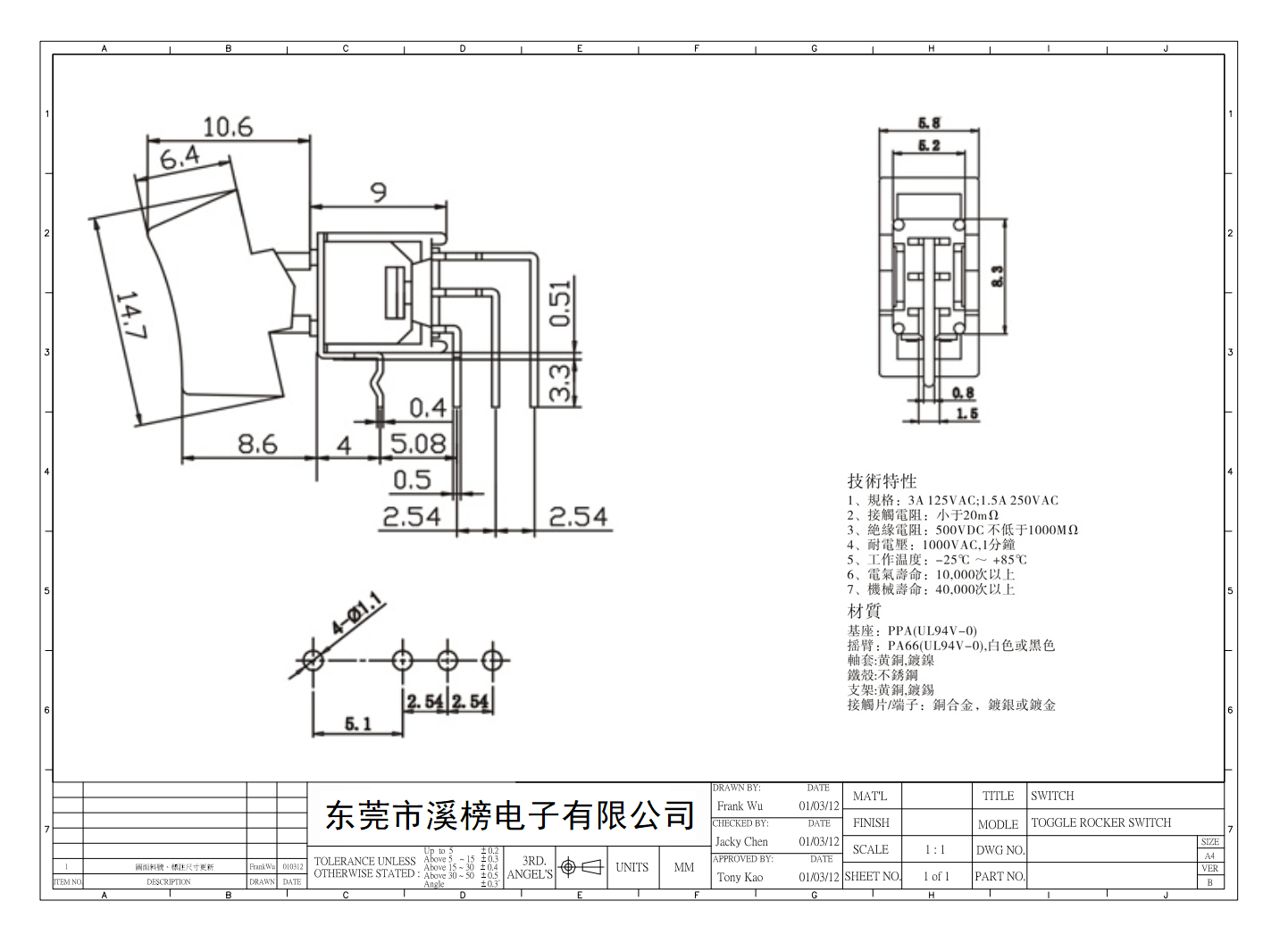

XB-102-C4B

钮子开关技术参数

1、规格：3A 5A 125VAC；1.5A 250VAC

2、接触电阻：小于20mΩ

3、絶缘电阻：500VDC不低于1000MΩ

4、耐电压：1000VAC，1分钟

5、工作温度：-25℃～＋85℃

6、电气寿命：10,000次以上

7、机械寿命：40,000次以上

材质

基座：PPA（UL94V-0）

手柄：黄铜，镀铬

轴套：黄铜，镀镍或镀铬

铁壳：不锈钢

支架：黄铜，镀锡

接触片／端子：铜合金，镀银或镀金

品牌：溪榜电子

Toggle switch Rocker switch technical characteristics

1. Specifications: 3A 5A 125VAC; 1.5A 250VAC

2. Contact resistance: less than 20mΩ

3. Insulation resistance: 500VDC not less than 1000MΩ

4. Withstand voltage: 1000VAC, 1 minute

5. Working temperature: -25℃～＋85℃

6. Electrical life: more than 10,000 times

7. Mechanical life: more than 40,000 times

Material

Base: PPA (UL94V-0)

Handle: brass, chrome plated

Shaft sleeve: brass, nickel-plated or chrome-plated

Iron case: stainless steel

Bracket: brass, tin plated

Contact piece/terminal: copper alloy, silver-plated or gold-plated

Brand: Xibang Electronics
