联动式按键开关参数特性
额定电压:DC 12V 30V
额定电流:DC 0.3A 0.5A
接触阻抗:30mΩ MAX
绝缘阻抗:100MΩ MIN
耐焊温度:250±5°5s
使用寿命:10,000 cycles
使用温度:-25 ℃ to 80 ℃
使用湿度:≤85% RH
动作力度:180gf ±50gf
品牌:中国溪榜/XI BANG
应用领域:汽车、灯具、数码、安防、通讯、医疗器械、家用电器等

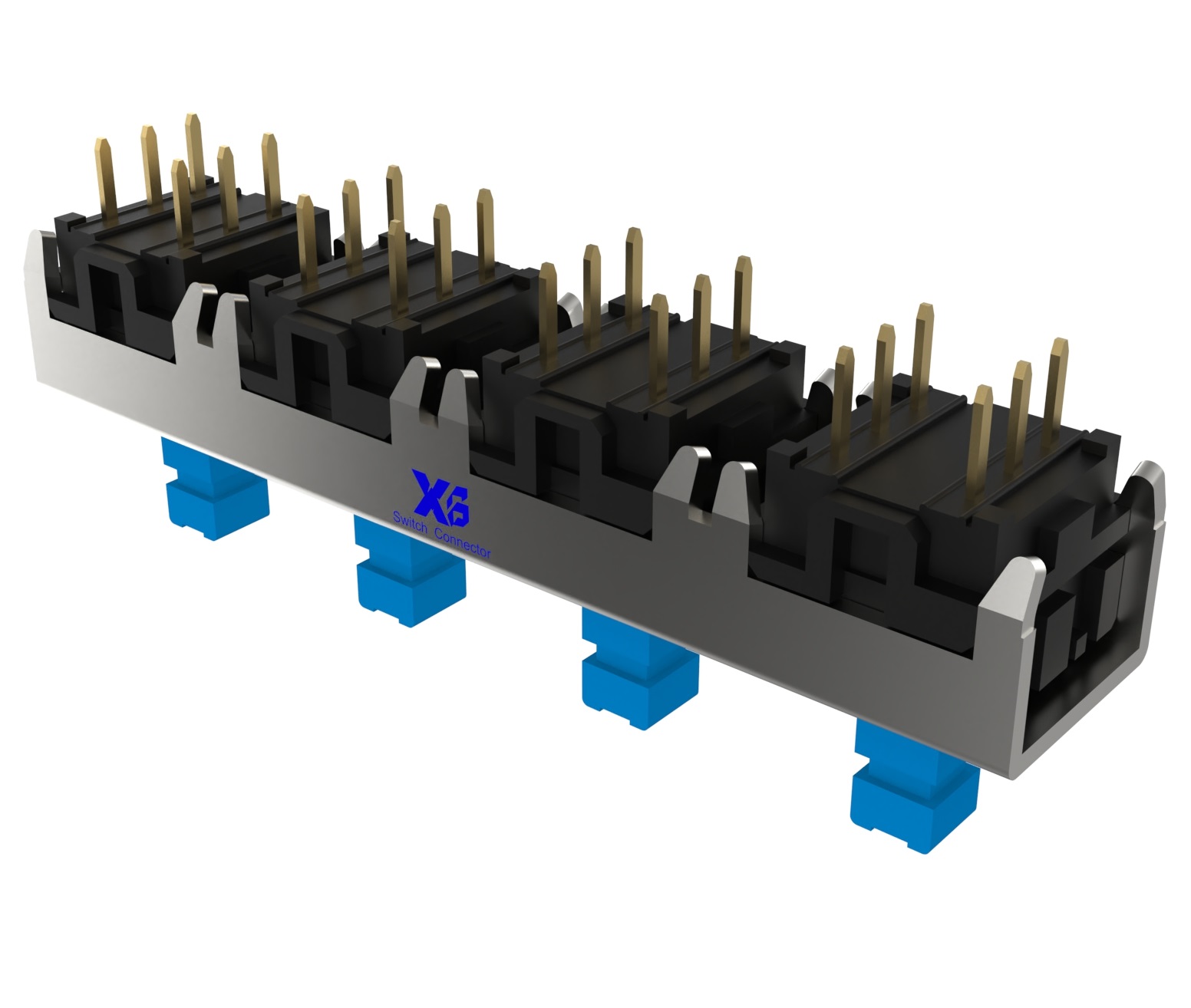

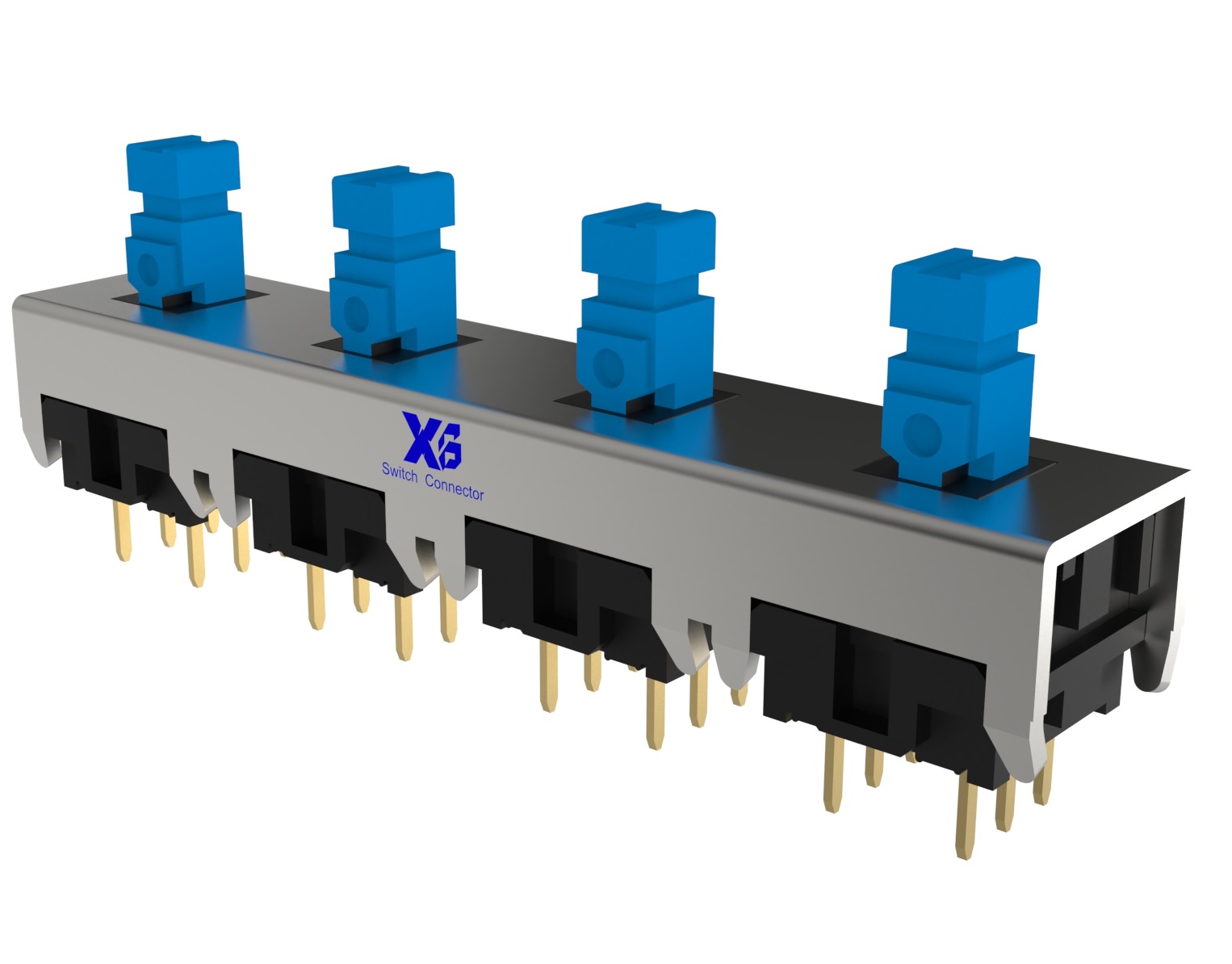

Parameter characteristics of linked button switch
Rated voltage: DC 12V 30V
Rated current: DC 0.3A 0.5A
Contact impedance: 30m Ω MAX
Insulation impedance: 100M Ω MIN
Welding resistance temperature: 250 ± 5 ° 5s
Service life: 10000 cycles
Operating temperature:- 25 ℃ to 80 ℃
Usage humidity: ≤ 85% RH
Action force: 180gf ± 50gf
Brand: China Xibang/XI BANG
Application areas: automotive, lighting, digital, security, communication, medical equipment, household appliances, etc
